Define the Transfer Boundary Before Drawing the Route

For pharmaceutical and life-science operations, an AMR entering a clean area faces a more fundamental question than whether it can reach a destination: does every material move remain within a controlled boundary? Even a short route can involve doors, airlocks, floor zones, parking bays and carrier contact surfaces. If those boundaries are not defined, automation simply moves uncertainty faster.

A more durable approach is to divide internal logistics into controlled transfer units: where material is released, which closed carrier contains it, where it waits, which door authorizes passage and how receipt is confirmed. The AMR transports a controlled unit between defined points; it does not replace cleanroom management. For sterile or otherwise critical processes, the detailed solution must be aligned with site process, quality and validation requirements.

Treat the Airlock as a Handover Station

An airlock is not an ordinary corridor. For an AMR, it is a capacity-constrained handover station with explicit states. Before a task enters, the destination side must be ready to receive it. On arrival, the system needs confirmation that the rack is in the correct bay and that the access state allows release. After transfer, the occupied position must be released so the waiting area does not become informal storage.

That is why an airlock should not be represented as one coordinate on a map. A practical layout distinguishes an outer waiting bay, a door-alignment point, an internal airlock bay and an inner handover point. Each position needs an allowed carrier type, capacity and timeout response. Only then can dispatching distinguish a queue at the door from a completed handover.

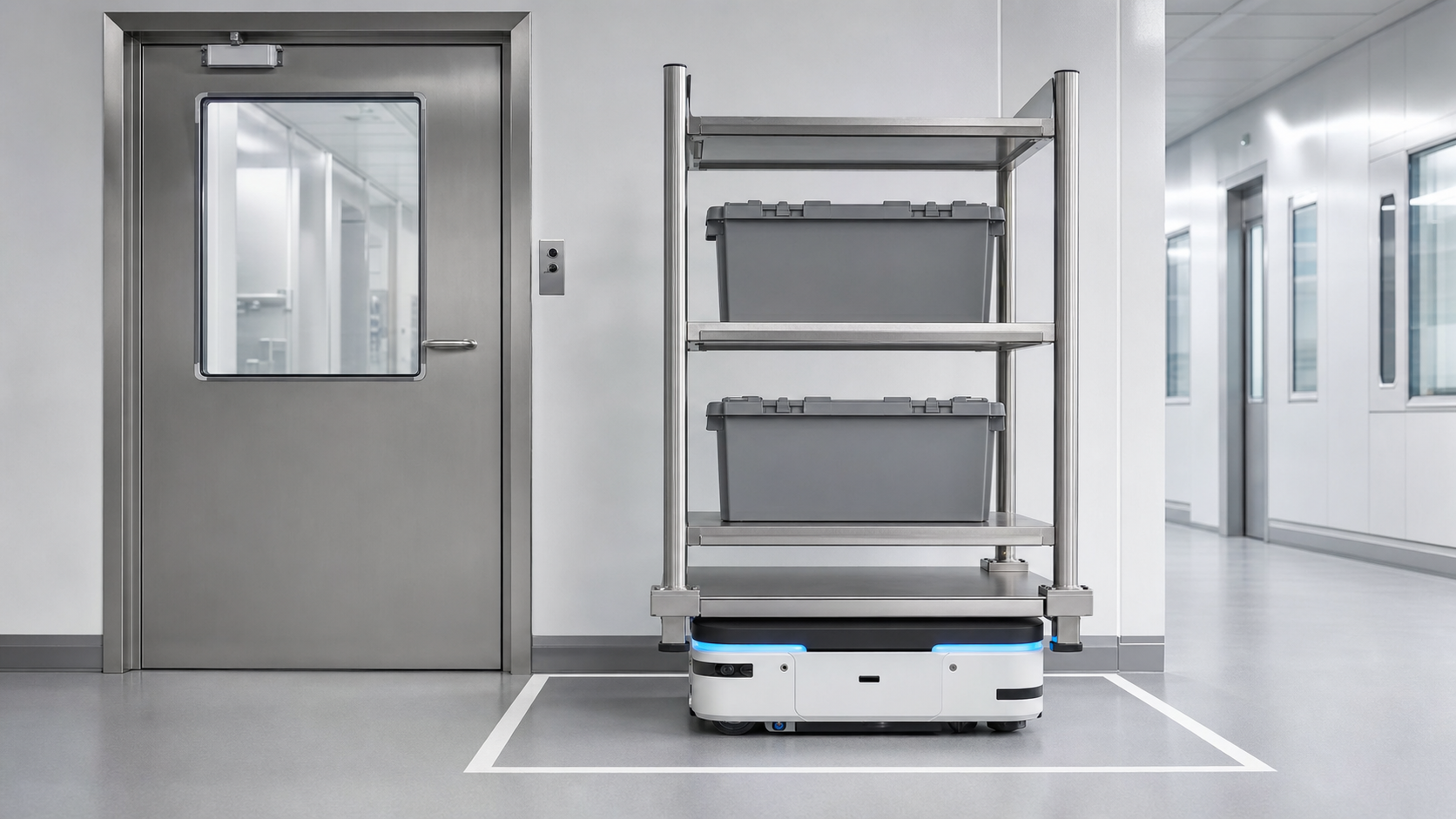

Figure 1: Controlled airlock staging distinguishes waiting from handover

Cleanability Matters More Than Extra Features

In cleanroom logistics, more complexity is not automatically better. Exposed gaps, inaccessible recesses and cable paths that collect dust make cleaning and inspection harder. Equipment intended for controlled areas should be assessed for wipeable surfaces, accessible corners, inspectable sensors and indicators, and a clear path back to service after cleaning.

The carrier matters as much as the vehicle. Closed totes, cleanable stainless racks and process-appropriate fixtures create a stable transfer unit. With a latent-lift AMR, for example, the vehicle should enter the rack opening straight on, lift from the central support area and carry the complete rack as one unit. This reduces manual handling while keeping cleaning, inspection and carrier changes at defined stations.

Keep Batch Separation in the Carrier, Task and Space

Arrival does not automatically mean availability. When materials with different batches or states travel through the same logistics network, separation cannot depend on verbal reminders. The task, carrier and parking bay should express the same relationship: the task carries material status, the tote or rack retains its identity, and the station accepts only permitted states. If a move waits for review or release, the controlled unit must remain clear.

This does not require excessive on-floor messaging. It requires visible operational boundaries between normal staging, pending-confirmation, exception-isolation and empty-carrier return positions. When spatial rules follow task state, the site is less likely to have material in the correct physical location but in the wrong process condition.

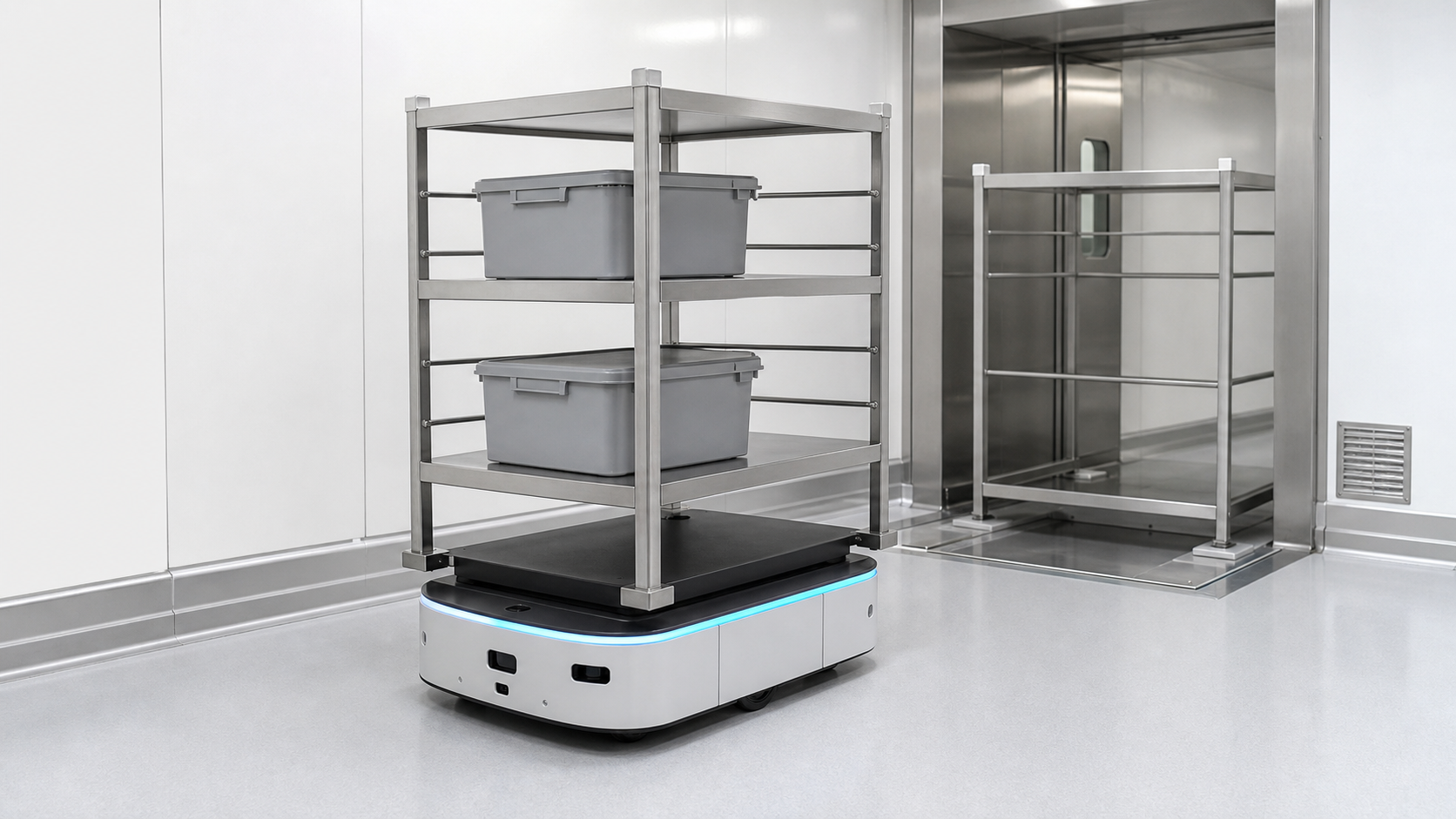

Figure 2: An isolation buffer gives exception material a defined location

Make Exceptions Recoverable

Mature projects are tested by exceptions: a door does not release on time, a receiving bay is occupied, a rack is not present or cleaning confirmation is incomplete. If every exception requires an improvised decision, even a reliable AMR fleet cannot create repeatable operations. The workflow should define a limited set of responses: wait, retreat to a named buffer, transfer to an isolation bay, request review or redispatch after confirmation.

The goal is not to automate quality decisions. It is to keep the logistics layer controlled: every pause has a location, every restart has conditions and every handover has a record. That is how an AMR evolves from a machine that moves to a system that moves according to rules.

A Practical Starting Sequence

A cleanroom AMR project is easier to evaluate when the design sequence is explicit. First, map the material categories and the permitted transition points between areas. Second, define the carrier and the rack geometry that the robot will actually handle, including where it can wait and where it can be cleaned or inspected. Third, describe normal handover and the few exception paths that operators are allowed to use. Only after these decisions are clear should the team tune routes, fleet size or travel speed.

This order also makes acceptance more meaningful. Rather than demonstrating only that a robot can travel from A to B, the site can test a complete operating cycle: a closed carrier is released, staged at an airlock, received at the correct side, held safely when the destination is unavailable and returned or isolated under defined conditions. The result is a practical conversation between operations, engineering and quality rather than a route demonstration in isolation.

The same discipline supports future expansion. Once bays, handover states and carrier rules are stable, additional tasks or vehicles can be introduced without redefining every movement. The intent is not maximum automation at the first milestone. It is a logistics foundation that remains understandable, inspectable and manageable as the operation changes.

How AMRs Fit Into a Cleanroom

The value of a cleanroom AMR is not a faster route alone. It is a material-transfer process with fewer unnecessary touches, clearer boundaries and a defined recovery path. Start with zoning and handover, select the matching vehicle, carrier and parking method, then embed cleaning, isolation and exception handling into daily operation. That sequence is far closer to a cleanroom logistics solution that can be sustained.
